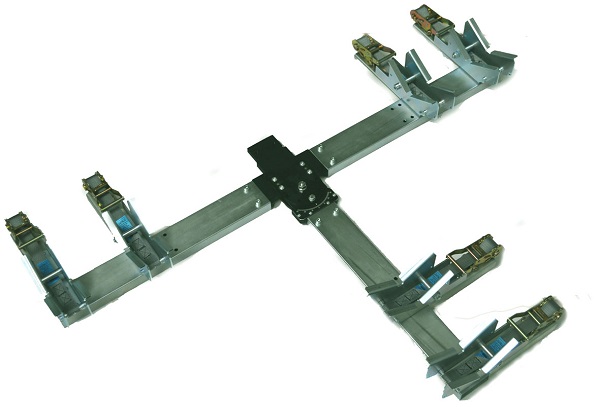

AL 4200 C with SRC device
Strap clamps with working range 40 ÷ 225 and 63 - 315 mm.
|
TECHNICAL SPECIFICATIONS |
|
| ALIGNING TOOL AL 4200 C | |
| Working range | 40 ÷ 225 mm |
| Applications | Couplers / Elbows 45° - 90° / Tees |
| Kit reduction rings | Unecessary |
| Dimensions | 1280 x 650 x 195 mm |
| Weight | 17,8 Kg |
-
Suitable for couplers,tees,45/90° applications
-
Fast acting "tug and tension"
-
Galvanized steel made
-
Complete with plastic case(no AL 4315C)
- Available with SRC device for continuos regulation 0-90°
|
TECHNICAL SPECIFICATIONS |
|
| ALIGNING TOOL AL 4315 C | |
| Working range | 63 ÷ 315 mm |
| Applications | Couplers / Elbows 45° - 90° / Tees |
| Kit reduction rings | Unecessary |
| Dimensions | 1370 x 650 x 195 mm |
| Weight | 18,9 Kg |
