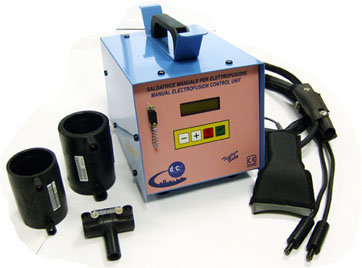

Polyvalent electrofusion welding unit with barcode reader. 230V input power supply.Working range 20÷400 mm. According to ISO 12176/2-3 Norms.
|
TECHNICAL SPECIFICATION | |
| Single-phase power supply |
230 V 50/60 Hz |
| Output voltage |
8 ÷ 48 V |
| Max output current |
95 Amp. |
| 60% duty cycle output |
55 Amp. |
| Max input power | 3.8 kVA |
| Working range |
20 ÷ 315 mm (400 mm in case of emergency) |
| Working temperature range | -10°C - +45°C |
| Operating mode |
Barcode (with hand-held reader) / Manual |
| Usable ISO codes |
24/Electrofusion-30/Operator |
| Manual Mode | Time / Voltage |
| Internal Memory | 300 reports |
| Printer/PC connection |
RS 232 serial and USB port |
| Protection degree |
IP 54 |
| Dimensions/Weight |
290 x 190 x 250 mm / 17 Kg |
| Transport case | Trevira carrying bag |
|
ACCESSORIES | |
| Standard equipment |
4 and 4,7 mm terminal connectors and carryng bag |
| On request | See .pdf datasheet attached |
SUITABLE FOR:
PE PRESSURE FITTINGS <48 V FOR GAS-WATER MAX Ø 315 mm
Elofit, Durafuse, Eurostandard, Strengweld, Riesselman, Manibs, Wavin/Monoline, Friatec, Plastitalia, George Fischer, Plasson, Central Plastic, Unidelta, Uponor, Degaz, Technima, Innogaz, S&L, Girpi, Agru, Tega,Wanquan,Firat.
PE DRAINAGE FITTINGS <48 V MAX Ø 315 mm
Frialen/Friafit, Strengweld, Plastitalia, Elofit.
PP-R FITTINGS FOR SANITARY WATER <48 V Ø MAX 315 mm
Coprax, Acquatechnik, Niron, Polysistem, Banninger, George Fischer,Aquatherm.
-
230V 50/60 Hz (185 ÷ 275V) input power supply
-
Barcode reader with hand-held reader
-
Manual input of Time/Voltage parameters
-
Working range 20 ÷ 400 mm
-
300 welding reports memory capacity
-
Short circuit dynamic monitoring process on the wire fitting
-
Suitable to be supplyed with generating sets
