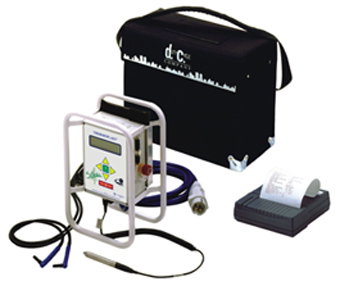

Polyvalent electrofusion welding unit with barcode reader. 48V input power supply.Working range 20÷800 mm. According to ISO 12176/2-3-4 Norms.
TECHNICAL SPECIFICATION |
|
Single-Phase power supply | 48 V 50/60 Hz |
Output voltage | 8 ÷ 48 V |
Max output current | 110 Amp. |
60 % duty cycle output | 80 Amp. |
Max input power | 4,4 kVA |
Working range | 20 ÷ 800 mm |
Working temperature range | -10°C - +45°C |
Operating modes | Barcode / Manual |
Usable ISO codes | 24 Electrofusion / 30 Operator -26/40 Traceability codes |
Manual system | Fitting code number and Time / Voltage parameters |
Internal memory | 1000 reports |
Printer/PC connection | RS 232 Serial |
Protection degree | IP 54 |
Dimensions/Weight | 350 x 230 x 150 mm / 18 Kg |
Transport case | Trevira carrying bag |
ACCESSORIES |
|
Standard Equipment | 4 and 4,7 mm terminal connectors and carrying bag |
On request | See .pdf datasheet attached |
SUITABLE FOR:
PE PRESSURE FITTINGS <48 V FOR GAS-WATER MAX Ø 710 mm
Elofit, Durafuse, Eurostandard, Strengweld, Riesselman, Manibs, Wavin/Monoline, Friatec, Plastitalia, George Fischer, Plasson, Central Plastic, Hydroblock, Uponor, Degaz, Technima, Innogaz, S&L, Girpi, Agru, Tega,Wanquan,Firat,etc.
PE DRAINAGE FITTINGS <48 V MAX Ø 710 mm
Frialen/Friafit,Plastitalia,Elofit,Strengweld,Plasson
PP-R FITTINGS FOR SANITARY WATER <48 V Ø MAX 400 mm
Coprax, Aquatherm,Acquatechnik, Niron, Polysistem, Banninger, George Fischer.
-
48V 50/60 Hz (45 ÷ 65V) input power supply
-
Barcode reader with optical pen (hand-held reader on request)
-
Manual input of fitting code number or Time/Voltage parameters
-
Working range 20 ÷ 800 mm
-
1000 welding reports memory capacity
-
Suitable for traceability codes (ISO 12176/4)
-
Safety frame
-
Short circuit dynamic monitoring process on the wire fitting
-
Suitable to be supplyed with generating sets
-
Improved performance allows use with larger fittings
