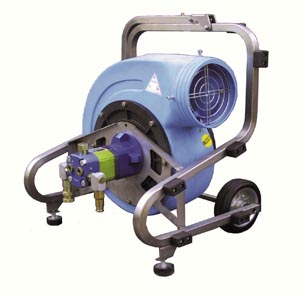

Ventilator / Aspirator with hydraulic motor.
|
TECHNICAL SPECIFICATION |
|
| Operating pressure | max 150 bar |
| Flow min/max | 20 ÷ 40 l/min |
| Air flow | 2000 m³/h |
| Air temperature | max 50°C |
| Mouths diameter | 200 mm |
| Air hose lenght | 8 m |
| Dimensions/Weight | 700 x 605 x 510 / 20 Kg |
|
ACCESSORIES |
|
| Standard equipment | 8m lenght air hose |
| On request | See .pdf datasheet attached |
-
Suitable for ventilation manholes and closed ambients
-
Adaptore for the connection of two air hoses
-
Stainless steel frame and construction in polypropylene
-
Hydraulic motor self-regulated and self-protected
-
Supplied with ground connection complete with cables and tools to neutralized static current
-
Available in version with 230-48V electric motor
