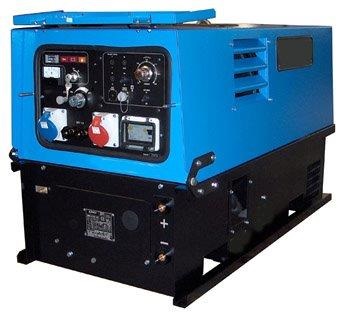

300 A D.C. diesel engine driven welder with 400/230/48V 50 Hz three-single phase generator.
|
TECHNICAL SPECIFICATION |
|
| ALTERNATOR | |
| Type | Asyncronous |
| N° Poles | 2 |
| STEEL WELDING PERFORMANCES | |
| 35% Duty cycle | 300 A-32V |
| 60% Duty cycle | 250 A-30V |
| Striking voltage | 75 V |
| Stepless welding current regulation | 20 ÷ 300 A |
| AUXILIARY GENERATOR PERFORMANCES | |
| 400 V -50 Hz Three-phase power | 8 kVA cosfi 0.8 |
| 230/48 V -50 Hz Single-phase power | 7/5 kVA cosfi 0.8 |
| ENGINE | |
| Type | LOMBARDINI 12 LD 477/2 diesel |
| Displacement/Cylinders | 954 cc / 2 |
| Power/RPM | 17,6 HP / 3000 |
| Cooling / Starting | Forced air / Electric and recoil starter |
| Tank capacity | 30 l |
| Engine protection | Yes - low oil pressure |
| OTHER CARACHTERISTICS | |
| Insulation class / Protection degree | F / IP 23 |
| Acoustic level | LWA 97 |
| Dimensions / Weight | 1305 x 731 x 844 mm / 340 Kg |
|
ACCESSORIES |
|
| Standard equipment | See .pdf datasheet attached |
| On request | See .pdf datasheet attached |
-
300 A D.C. welding current output
-
Powered by diesel Lombardini engine
-
With"Safety low pressure device"
-
Remote control for welding current regulation available on request
-
Three-Single phase 400/230/48V 50Hz with overload protection
-
Suitable for cellulosic electrodes.
