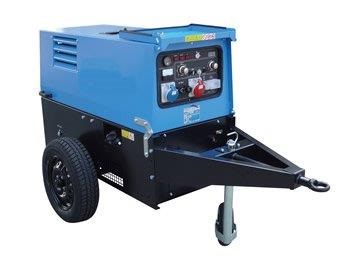

400 A D.C. engine driven welder with 400/230/48 V three-single phase generator.Special version for cellulosic electrodes.
|
TECHNICAL SPECIFICATIONS |
|
| ALTERNATOR | |
| Type | Asyncronous |
| N° Poles | 2 |
| STEEL WELDING PERFORMANCES | |
| 35% Duty Cycle | 400 A -36V |
| 60% Duty Cycle | 350 A -34V |
| Striking voltage | 75 V |
| Stepless welding current regulation | 20 ÷ 400 A |
| AUXILIARY GENERATOR PERFORMANCES | |
| 400 V - 50 Hz Three-phase power | 15 kVA cosfi 0.8 |
| 230/48 V-50 Hz Single-Phase power | 10 / 5 kVA cosfi 0.8 |
| ENGINE | |
| Type | Lombardini 9LD 625/2 diesel |
| Displacement/Cylinders | 1248 cc / 2 |
| Power/rpm | 23 HP / 3000 |
| Cooling/Starting | Forced air / Electric |
| Tank capacity | 38 l |
| Engine protection | Yes - Low oil level |
| OTHER CHARACTERISTICS | |
| Insulation class/Protection degree | F / IP 23 |
| Acoustic power | LWA 99 |
| Dimensions / Weight | 1400 x 731 x 1023 mm / 434 Kg ca. |
|
ACCESSORIES |
|
| Standard equipment | See.pdf attached datasheet |
| On request | See.pdf attached datasheet |
>
- 400 A D.C.welding current
- Powered by diesel Lombardini engine
- Three-Single phase 400/230/48V 50Hz with overload protection
- Remote control for welding current regulation available on request
- Suitable for cellulosic electrodes.
