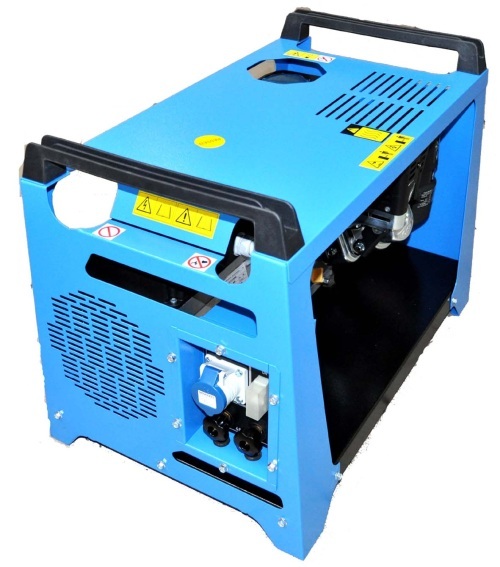

3 kVA single-phase 230-48V/50 Hz generating set.Silenced version.
|
TECHNICAL SPECIFICATION | |
| PERFORMANCES | |
| Alternator | 2 poles Syncronous |
| 230V/50Hz single-phase power | 3 kVA cosfi 0.8 |
| 48V/50Hz single-phase power | 3 kVA cosfi 0.8 |
| ENGINE | |
| Type | Kolher 270 gasoline |
| Displacement/Cylinders | 170 cc / 1 |
| Power/RPM | 5.5 HP / 3000 |
| Cooling / Starting | Forced air / recoil starter |
| Tank capacity | 3 l |
| Engine protection | Yes - low oil level |
| OTHER CARACHTERISTICS | |
| Insulation class / Protection degree | F /IP 23 |
| Acoustic level | LWA 86 |
| Dimensions / Weight | 560 x 360 x 420 mm / 38 Kg |
|
ACCESSORIES | |
| Standard equipment | |
| On request | See .pdf attached datasheet |
-
Single-phase 230/48V output with overload protection
-
Powered by gasoline Robin engine
-
With "Oil Alert" device
-
Acoustic level 86 LWA
