PLF 250/230 /VO /VT



plf 250 vo          plf 250 vt

PLF 250/230 VO                                                                    PLF 250/230 VT

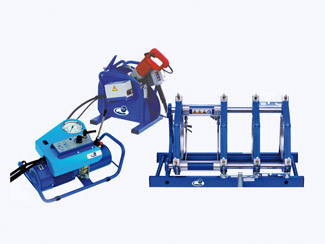

Electrohydraulic butt-fusion welding unit.Working range 75 ÷ 250 mm.According to ISO 12176/1 Norm.

TECHNICAL SPECIFICATION
BASIC MACHINE
Working range 75 ÷ 250 mm
Dimensions 830 x 520 x 520 mm
Weight 56 Kg
ELECTROHYDRAULIC CONTROL UNIT
Single-phase power supply 230 V - 50 Hz / 470 W
Protection degree IP 44
Dimensions / Weight 600 x 370 x 440 mm / 24 Kg
MILLING CUTTER
Single-phase power supply 230 V - 50 Hz / 620 W
Protection degree IP 20
Noise level 79 dBA
Dimensions / Weight 500 x 430 x 250 mm / 13 Kg
HEATING ELEMENT
Single-phase power supply 230 V - 50 Hz / 1500 W
Protection degree IP 54
Temperature regulation Elettronica 180 ÷ 280 °C
Dimensions / Weight 500 x 80 x 430 mm / 8 Kg


ACCESSORIES
Standard equipment
On request See .pdf attached datasheet

logopdf

logomail








  • Steel frame with aluminium clamps

  • Twin dual pipe clamps

  • Electronically regulated heater and temperature adjustment

  • Safety micro switch fitted for safe operations

  • Large easy-to-read pressure gauge

  • Join pipe to pipe and pipe to fittings

  • Complete with hydraulic pipes with fast connection

  • 230V-50 Hz input power supply

  • Suitable for SDR 6 ÷ 41
