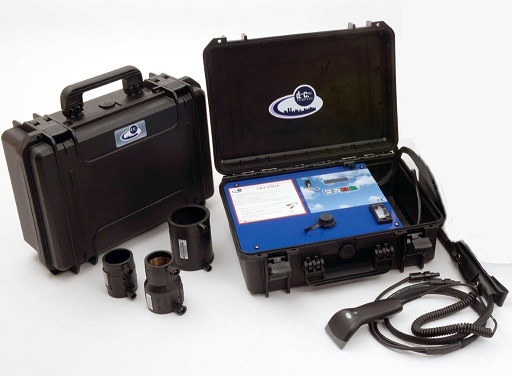

Polyvalent electrofusion welding unit. 230V input power supply. Working range 20÷400 mm. According to ISO 12176/2-3 Norm. Reinforced plastic briefcase.
|
TECHNICAL SPECIFICATIONS |
|
| Single-phase power supply | 230 V 50/60 Hz |
| Output voltage | 8 ÷ 48 V |
| Max output current | 95 Amp. |
| 60% duty cycle output | 60 Amp. |
| Max input power | 3.8 kVA |
| Working range | 20 ÷ 315 mm (400 mm in case of emergency) |
| Working temperature range | -10°C - +45°C |
| Operating modes | Barcode and Manual |
| Manual mode | Time / Voltage |
| Internal memory | 300 report |
| Printer/PC connection | USB |
| Protection degree | IP 54 |
| Dimensions/Weight | 464 x 366 x 176mm / 18 Kg |
| Transport case | Reinforced plastic briefcase |
|
ACCESSORIES |
|
| Standard equipment | 4 and 4,7 mm universal terminal connectors - Push system |
| On request | See .pdf datasheet attached |
SUITABLE FOR:
PE PRESSURE FITTINGS <48 V FOR GAS-WATER MAX Ø 400 mm
Elofit, Durafuse, Eurostandard, Strengweld, Riesselman, Manibs, Fusion,Wavin/Monoline, Friatec, Plastitalia, George Fischer, Central Plastic, Unidelta, Uponor, Degaz, Pls,Technima, Innogaz, S&L, Girpi, Agru, Tega,Wanquan,Firat.
PE DRAINAGE FITTINGS <48 V MAX Ø 400 mm
Frialen/Friafit, Strengweld, Plastitalia, Elofit.
PP-R FITTINGS FOR SANITARY WATER <48 V Ø MAX 400 mm
Coprax, Acquatechnik, Niron, Polysistem, Banninger, George Fischer,Aquatherm.
-
230V 50/60 Hz (185 ÷ 275V) input power supply
-
Barcode and manual input
-
Working range 20 ÷ 400 mm
-
300 welding reports memory capacity
-
Short circuit dynamic monitoring process on the wire fitting current
-
Suitable to be supplyed with generating sets
