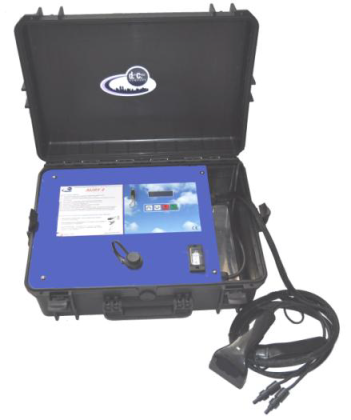

Aury2 - Electrofusion welding unit


aury

Polyvalent electrofusion welding unit with barcode reader. 230V input power supply.Working range 20÷800 mm. According to ISO 12176/2-3 Norm

TECHNICAL SPECIFICATION

Single-phase power supply 230 V 50/60 Hz
Output voltage 8 ÷ 48 V
Max output current 120 Amp.
60% duty cycle output 80 Amp.
max input power 4.8 kVA
Working range 20 ÷ 800 mm
Working temperature range -10°C - +45°C
Operating mode Barcode / manual
Usable ISO codes ISO 13950
Manual mode Time / Voltage
Internal memory 300 reports
Printer/PC connection USB and Serial
Protection degree IP 54
Dimensions/Weight 566 x 438 x 216 mm / 24 Kg
Transport case Reinforced plastic briefcase



ACCESSORIES

Standard equipment 4 and 4,7 mm universal terminal connectors  - Push system
On request See .pdf datasheet attached

logopdf

logomail

SUITABLE FOR:
PE PRESSURE FITTINGS <48 V FOR GAS-WATER MAX Ø 800 mm
Elofit, Durafuse, Eurostandard, Strengweld, Riesselman, Manibs, Wavin/Monoline, Friatec, Plastitalia, George Fischer, Plasson, Central Plastic, Unidelta, Uponor, Degaz, Technima, Innogaz, S&L, Girpi, Agru, Tega,Wanquan,Firat.

PE DRAINAGE FITTINGS <48 V MAX Ø 800 mm
Frialen/Friafit, Strengweld, Plastitalia, Elofit.

PP-R FITTINGS FOR SANITARY WATER <48 V Ø MAX 400 mm
Coprax, Acquatechnik, Niron, Polysistem, Banninger, George Fischer,Aquatherm.




    • 230V 50/60 Hz (185 ÷ 275V) input power supply

    • Barcode reader with optical pen (hand-held reader on request)

    • Manual imput of Time/Voltage parameters

    • Working range 20 ÷ 800 mm

    • 300 welding reports memory capacity

    • Short circuit dynamic monitoring process of the wire fitting

    • Suitable to be supplyed with generating sets

    • Improved performance allows use with larger fittings
