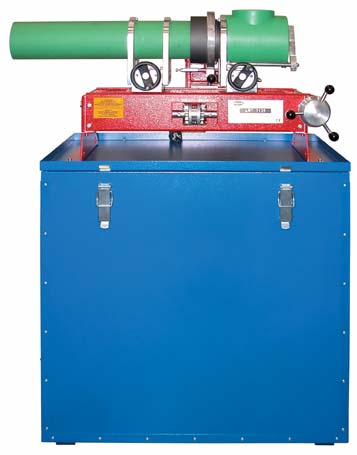

Socket fusion machine for pipes and fittings.Suitable for job site or in plant use
TECNICAL SPECIFICATION |
|
Working range | 32 ÷ 125 mm |
Single-phase power supply | 230 V 50/60 Hz 2500 W |
Temperature regulation | 180 ÷ 300 °C |
Suitable for | PE, PP,PP-R ,PVDF |
Dimensions/Weight | 720 x 520 x 360 mm / 49,5 Kg ca. |
ACCESSORIES |
|
Standard equipment | Bushes 32 ÷125 mm, transport/working steel case |
On request | See .pdf attached datasheet |
-
Working range 32 ÷ 125 mm
-
Worked heating element for a better heat transmission
-
Precision mechanical thermostat with pre-setting temperature for PP-R
-
Heat insulated plastic handle
-
Complete with bushes ( DVS 2208) and working bench
