PF 32-C



pf 32c

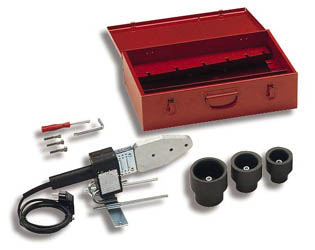

Manual socket fusion tool for pipes and fittings.

TECHNICAL SPECIFICATION
Working range 20 ÷ 32 mm
Single-phase power supply 230 V 50/60 Hz 550 W
Temperature regulation 180 ÷ 300 °C
Suitable for PE,PP-R,PP ,PVDF
Dimensions/Weight 340 x 60 x 110 mm / 1.3 Kg


ACCESSORIES
Standard equipment Bushes 20-32 mm, clamp and painted steel box
On request See .pdf attached datasheet

logopdf

logomail




  • Working range 20 ÷ 32 mm

  • Worked heating element for a better heat transmission

  • Precision mechanical thermostat with pre-setting temperature for PP-R

  • Heat insulated plastic handle

  • Complete with bushes (DVS 2208),bench vice and painted steel box.
