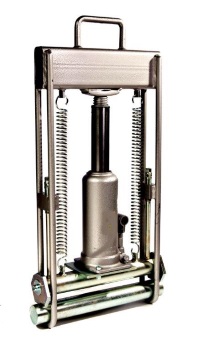

Mains squeeze tool for PE pipes.Complete with end gauges 63 ÷ 200 mm SDR 11-17.
|
TECHNICAL SPECIFICATION |
|
| SQUEEZE TOOLS SCH 200 | |
| Type | Hydraulic |
| Working range | 63 ÷ 200 mm SDR 11-17 |
| Dimensions | 450 x 110 x 890 mm |
| Weight | 39 Kg |
|
ACCESSORIES |
|
| Standard equipment | 2 set end gauges for SDR11-17 |
| On request | See .pdf datasheet attached |
-
Full stroke hydraulic unit
-
Integral safety relief valve
-
Mechanical safety stops prevent creep and permit controlled release
-
Complete with 2 sets of end gauges 63 ÷ 200 mm SDR 11-17
