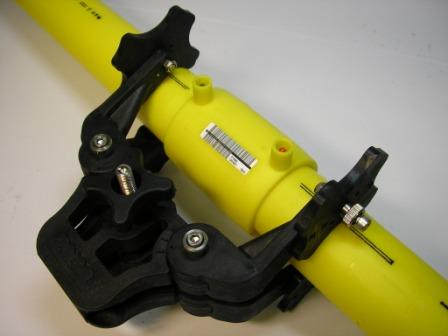

Positioning clamp for electrofusion fittings.Working range 16÷63 mm
|
TECHNICAL SPECIFICATION |
|
| POSITIONING CLAMP POS 1663 R | |
| Description | Positioning clamp |
| Working range | 16 ÷ 63 mm |
| Applications | Couplers, reducers, elbows 45° - 90° |
| Dimensions | 260 x 190 x 165 mm |
| Weight | 1,1Kg |
-
Ligtweight and easy to use
-
Accepts all types of electrofusion fittings
-
Align,restrains and promotes re-rounding of the pipe to prevent movement of the fitting during fusion and cooling
-
Exceendingly strong made from a tough enginnering plastic
-
All nuts and adjustments are fully captive and therefore cannot be lost
