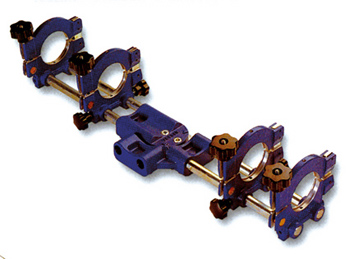

Aligner with working range 20 ÷ 63 mm.Kit reduction rings included.
|
TECHNICAL SPECIFICATIONS |
|
| ALIGNING TOOL AL 4063 R | |
| Working range | 20 ÷ 63 mm |
| Applications | Couplers / Elbows 45° - 90° / Reducers |
| Kit reducing rings | Included |
| Dimensions | 510 x 160 x 140 mm |
| Weight | 7 Kg |
|
ACCESSORIES ON REQUEST |
|
| Item | AL / D 4063 R |
| Applications | Tees |
| Kit reduction rings | Included |
| Dimensions | 410 x 160 x 140 mm |
| Weight | 4 Kg |
-
Suitable for couplers,reducers and 45/90° applications
-
Realized with 4 main jaws
-
Complete with kit of reduction rings
-
Tees application with accessorie AL/D 4063R on request
